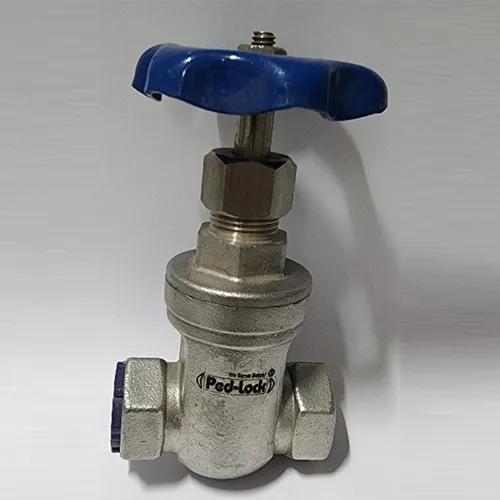

Gate Valves Manufacturer

We are chief manufacturers and exporters of supreme quality Gate valve. We employ the most modern machineries and technologies for making durable and high performance valves. Our products are immensely valued by our customers because of their matchless quality and robust fabrication. These valves are resistant to rust & corrosion as well as abrasion and can endure intense temperatures. We customize these valves in diverse sizes and specifications to match the requirements of our client.  We also offer these products at highly competitive prices like our Thermowell Valve and Quick Release Coupling.

    Specifications
  • Pressure Rating : Up to 100 bar (Standard Range : 500 bar / 7000 PSI)
  • TTemperature Rating : -20°C to 250°C
  • Face To Face ASME B 16.10
  • End Connection Flanged End - ASME B 16.5
  • Pressure – Temperature Chart ASME B 16.34
Size Range :
CLASS STANDARDS
2" - 60" Class 150
2" - 48" Class 300
2" - 42" Class 600
2" - 24" Class 900
2" - 16" Class 1500
2" - 16" Class 2500
1/2" - 2" Class 800
1/2" - 2" Class 1500
1/2" - 2" Class 2500
Specifications :
  • MOC Forged Steel (A 105 / F 11 / F 22 / S.S. 304 / S.S.306)
  • Trim 13 % Cr. Steel / S.S. 304 / S.S 316 / Stellited above class 1500
  • Ends Screwed / Socket Weld / Flanged (Weld Neck Type)
  • Rating Class 800 / Class 1500 / Class 2500
  • Mfg. Code API 602 / BS 5352
  • Test API 598 / BS 5146
  • Operation Hand Wheel, Electric Actuator
  • Size 15 mm to 250 mm
  • Type Bolted Bonnet / Welded Bonnet
Applications :
  • Chemical Industries
  • Pharmaceutical Industries
  • Water Treatment Plants
  • Irrigation Plants
  • Paints and Dyes Industries
